Here is an overview of the extrusion line for CPVC pipe production

The extrusion process for producing Chlorinated Polyvinyl Chloride (CPVC) pipes involves using specialized machinery to melt and shape the CPVC material into a continuous pipe. CPVC pipes are known for their excellent chemical resistance and high-temperature capabilities, making them suitable for various applications such as hot water supply, industrial piping, and sprinkler systems. Here is an overview of the extrusion line for CPVC pipe production:

1. Raw Material Handling:

  - CPVC resin is the primary raw material used in the extrusion of CPVC pipes. The resin is typically provided in pellet form and is stored in a hopper. The pellets are then fed into the extruder.

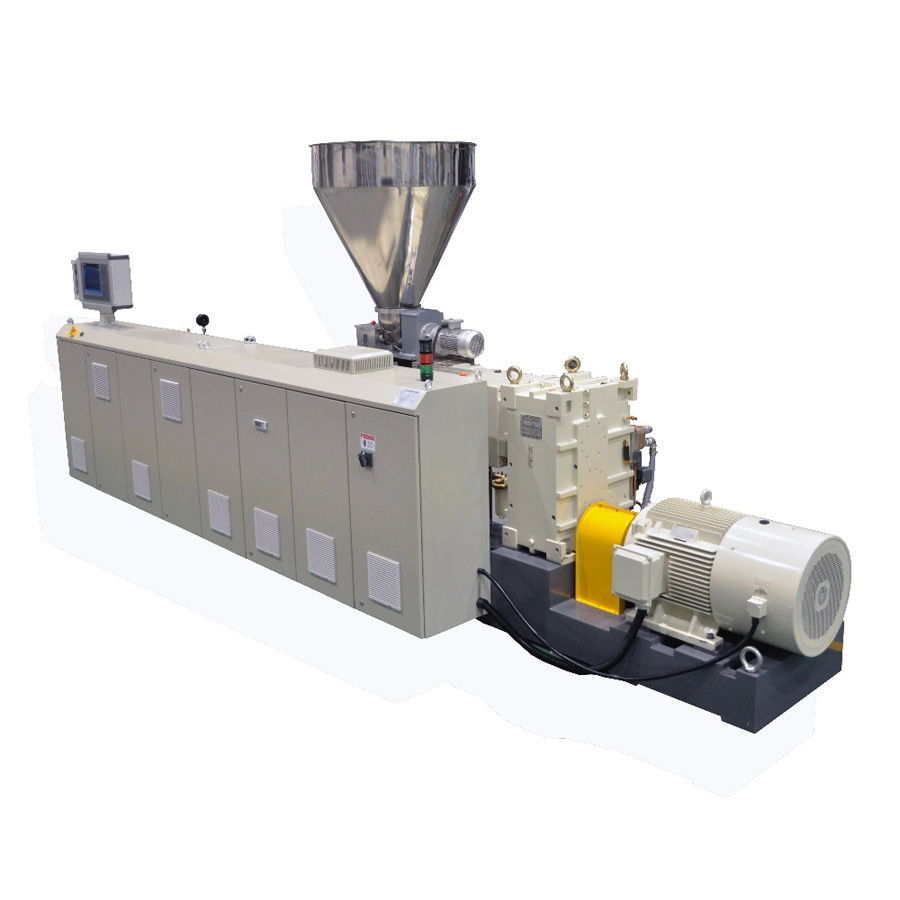

2. Extruder:

  - The extruder is a key component of the CPVC pipe extrusion line. It consists of a screw inside a heated barrel. As the CPVC pellets are fed into the extruder, they are conveyed forward by the rotating screw. The combination of heat from the barrel and mechanical action from the screw causes the CPVC pellets to melt and become a molten polymer.

3. Melted Polymer Extrusion:

  - The molten CPVC polymer is forced through a shaping die at the end of the extruder. The die imparts the desired shape to the molten material, typically forming a cylindrical pipe.

4. Cooling and Sizing:

  - The extruded CPVC pipe then undergoes a cooling process to solidify the molten material. This can be achieved using a water bath or cooling tanks. Sizing tools are used to ensure the pipe achieves the specified dimensions.

5. Haul-off Unit:

  - A haul-off unit consists of gripper belts that pull the CPVC pipe away from the extruder at a controlled speed. This helps maintain uniformity in the pipe's dimensions.

6. Cutting:

  - Once the CPVC pipe has been extruded, cooled, and sized, it is cut to the desired length. Cutting machines are used to ensure precision in the length of the produced pipes.

7. Inspection and Quality Control:

  - The extruded CPVC pipes undergo thorough inspection for quality control. This includes checking dimensions, wall thickness, and overall quality to ensure the pipes meet industry standards.

8. Cooling and Marking:

  - The final CPVC pipes are often cooled further and may be marked with relevant information, such as specifications, standards compliance, and manufacturer details.

Additional Considerations:

  - Additives and Stabilizers: During the extrusion process, additives and stabilizers are often introduced to enhance the properties of CPVC pipes, such as improving chemical resistance and ensuring the material's stability during processing.

  - Quality Assurance: Quality control measures are critical throughout the production process to ensure that the CPVC pipes meet the required specifications and standards.

The extrusion line for CPVC pipes is a well-established and efficient method for mass production, delivering consistent quality in terms of dimensions and performance. CPVC pipes produced through this process are widely used in various applications due to their durability, chemical resistance, and ability to withstand high temperatures.
