How a typical haul-off machine works

A haul-off machine, also known as a puller or caterpillar puller, is a piece of equipment used in the extrusion and processing of plastic and rubber materials. Its primary function is to pull or haul the extruded material through the production line at a controlled speed. The haul-off machine plays a crucial role in ensuring uniformity and consistency in the extruded product.

Here's how a typical haul-off machine works:

1. Extrusion Process: The material, usually in the form of molten plastic or rubber, is extruded through a die to create a continuous profile or shape.

2. Cooling: After extrusion, the material may go through a cooling process to solidify and maintain its desired shape.

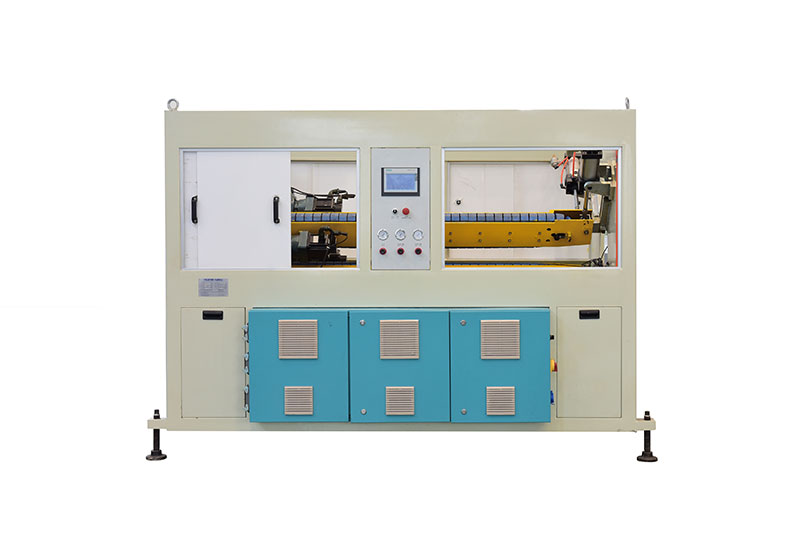

3. Haul-Off Machine: The haul-off machine is positioned downstream from the extrusion unit. It consists of two or more driven belts or caterpillar tracks that grip the extruded material.

4. Traction and Speed Control: The haul-off machine pulls the extruded material at a controlled speed. The speed is crucial for maintaining the desired dimensions and properties of the product. The traction force exerted by the haul-off machine is adjustable to accommodate different materials and production requirements.

5. Synchronization: In some cases, the haul-off machine is synchronized with the speed of the extruder or other downstream equipment to ensure a smooth and continuous production process.

6. Cutting or Winding: Once the material has been pulled through the haul-off machine, it may be cut into specific lengths or wound onto reels for further processing or packaging.

Haul-off machines are used in various industries, including plastic pipe and profile extrusion, cable manufacturing, and other applications where continuous extrusion processes are involved. The design and features of haul-off machines can vary depending on the specific requirements of the production process and the type of material being processed.
