Key features and considerations regarding stainless steel wafer ball valves

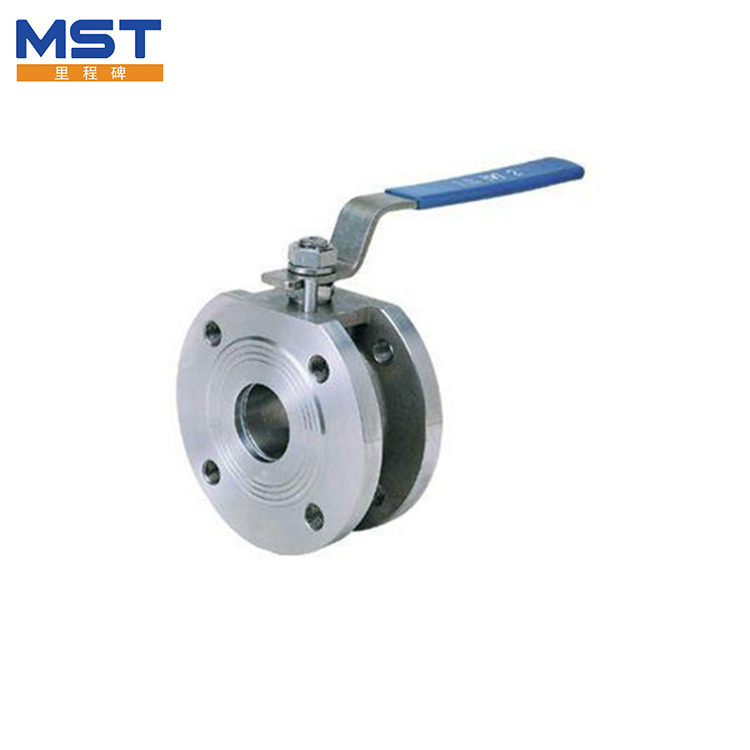

A stainless steel wafer ball valve is a type of industrial valve designed for regulating the flow of liquids or gases in a pipeline. It is characterized by its compact design, which allows it to fit between flanges in a pipeline without the need for additional flange connections. The term "wafer" in the context of ball valves refers to the valve's thin profile, allowing it to be installed directly between two flanges. Here are key features and considerations regarding stainless steel wafer ball valves:

1. Material:

  - Stainless steel is the primary material used for constructing wafer ball valves. This material provides corrosion resistance, durability, and the ability to handle various fluids, making it suitable for a wide range of industrial applications.

2. Design:

  - Wafer ball valves have a simple design that consists of a ball with a hole through its center (the bore) that can be rotated to control the flow of the fluid. The ball is typically made of stainless steel, and the valve body and other components are also constructed from stainless steel.

3. Actuation:

  - Ball valves can be manually operated using a lever or handwheel, or they can be automated with electric or pneumatic actuators. Automated options allow for remote control and integration into larger process control systems.

4. Compact Size:

  - The wafer design of the ball valve allows for a compact and lightweight construction. This design is well-suited for applications where space is limited, and it facilitates easy installation between flanges.

5. Bi-Directional Flow:

  - Wafer ball valves are typically designed for bi-directional flow, meaning they can control the flow of fluids in both directions. This bidirectional capability adds versatility to their applications.

6. Floating Ball Design:

  - Most wafer ball valves have a floating ball design, where the ball is not fixed to the stem. This design allows the ball to move slightly, ensuring a tight seal against the valve seats for enhanced sealing performance.

7. Fire-Safe Design (Optional):

  - Some stainless steel wafer ball valves are designed to meet fire-safe standards. This means they have features that prevent the passage of fluid in the event of a fire, enhancing safety in certain applications.

8. Wide Range of Applications:

  - Stainless steel wafer ball valves are used in various industries, including chemical processing, oil and gas, water treatment, HVAC, and general manufacturing. They are suitable for applications where tight shut-off, low maintenance, and reliability are crucial.

9. Pressure and Temperature Ratings:

  - The pressure and temperature ratings of stainless steel wafer ball valves vary based on the specific design and manufacturing standards. It's essential to select a valve that meets the requirements of the intended application.

10. Installation:

   - Wafer ball valves are installed between flanges using bolts. The valve has a central hole that aligns with the pipeline when the flanges are connected.

11. Maintenance:

   - Regular maintenance is essential for ensuring the long-term performance of stainless steel wafer ball valves. This may include periodic lubrication, inspection of seals, and addressing any signs of wear or corrosion.

Stainless steel wafer ball valves are valued for their simplicity, reliability, and space-saving design. When selecting a valve for a specific application, it's crucial to consider factors such as material compatibility, pressure and temperature requirements, and the desired level of automation. Additionally, adherence to industry standards and regulations is essential for ensuring the proper functioning and safety of the valve.
