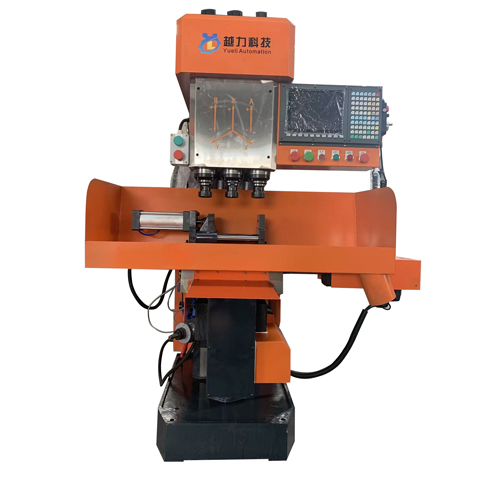

The Use of Drilling Tapping Milling Machine

Drilling tapping milling machines are versatile and commonly used in machining and metalworking processes. Let's break down the three main operations:

1. Drilling:

  - Purpose: Drilling is the process of creating a hole in a workpiece using a rotating cutting tool called a drill bit.

  - Machine Function: The machine will have a spindle that rotates the drill bit, and the workpiece is secured on a table or work surface that can be adjusted to different positions.

2. Tapping:

  - Purpose: Tapping is the process of creating internal threads in a hole, allowing it to receive a threaded fastener, such as a screw or bolt.

  - Machine Function: For tapping, the machine will use a tapping tool that rotates and moves axially to cut threads inside a pre-drilled hole. The spindle speed and feed rate need to be carefully controlled for tapping.

3. Milling:

  - Purpose: Milling involves cutting and shaping a workpiece using a rotating cutter. It can be used for various tasks, such as creating flat surfaces, contours, and complex shapes.

  - Machine Function: In a milling operation, the machine may have a variety of cutting tools, and the workpiece can be moved in different directions (X, Y, and Z axes) to achieve the desired shape.

Key Features:

- Spindle: The rotating part that holds the cutting tool.

- Table: The surface where the workpiece is secured. It can move in different directions to facilitate cutting operations.

- Control Panel: For adjusting settings such as spindle speed, feed rate, and tool changes.

- Tool Changer: Some advanced machines may have an automatic tool changer for switching between different tools.

Drilling tapping milling machines are essential in various industries, including manufacturing, metalworking, and prototyping, where precision and versatility are crucial. Before using such machines, it's important to follow safety guidelines and receive proper training to ensure efficient and safe operation.
