Understanding Step Drill Bits: Versatile Tools for Precision Drilling

A step drill bit is a versatile and efficient tool commonly used in various industries, including construction, metalworking, and DIY projects. Known for its unique design, a step drill bit allows users to drill multiple hole sizes with a single tool. This article explores the structure, functionality, and benefits of step drill bits, shedding light on why they are a valuable tool in many applications.

What is a Step Drill Bit?

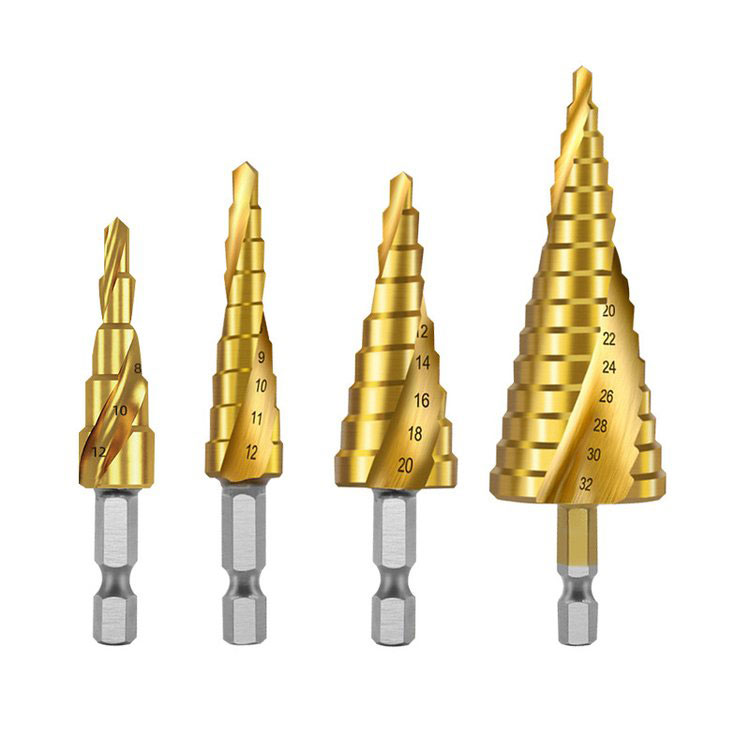

A step drill bit is a type of drill bit that features a conical shape with multiple cutting edges along its length. Each of these cutting edges corresponds to a different hole size, making the tool capable of drilling various hole diameters without needing to switch between different drill bits. The step drill bit’s design resembles a series of steps, hence the name, which allows it to drill progressively larger holes as the bit moves deeper into the material.

Step drill bits are commonly used for drilling through thin materials such as sheet metal, plastic, wood, and other soft materials. They are ideal for creating clean, precise holes of different sizes with minimal effort.

How Does a Step Drill Bit Work?

The step drill bit works by progressively increasing the diameter of the hole as the bit drills deeper into the material. As you apply pressure to the drill, the bit starts cutting at the smallest diameter (the first step). When you continue drilling, the bit gradually moves to the next step, creating a larger hole at each stage. This feature allows the user to create multiple hole sizes without changing bits, which is particularly helpful in tasks that require several holes of varying sizes.

The design of the step drill bit makes it well-suited for drilling in materials that are not overly thick. It provides precise control, ensuring clean and accurate holes. Additionally, the spiral flutes of the drill bit help to remove debris as it drills, reducing the risk of clogging.

Key Features of Step Drill Bits

1. Multiple Hole Sizes: The most distinctive feature of a step drill bit is its ability to create multiple hole sizes from a single tool. This versatility reduces the need to switch between different drill bits, saving time and effort.

2. Cone-Shaped Design: The conical shape of a step drill bit allows it to gradually enlarge the hole as it drills deeper, making it an ideal choice for applications that require a smooth transition between different hole diameters.

3. Precision and Accuracy: Step drill bits are designed to create clean and accurate holes with minimal burrs or rough edges. This is especially important in applications where a smooth finish is required, such as in sheet metal work or electrical installations.

4. Durability: Most step drill bits are made from high-quality materials like high-speed steel (HSS) or cobalt, which makes them durable and capable of withstanding heat and wear. This durability ensures that the drill bit can handle multiple drilling tasks before requiring replacement.

5. Reduced Need for Pilot Holes: In many cases, step drill bits do not require pilot holes. The design of the bit allows it to drill directly into the material, which can simplify the drilling process and reduce preparation time.

Applications of Step Drill Bits

1. Sheet Metal Work: One of the most common uses for step drill bits is in sheet metal work. These bits can easily drill through thin metal sheets, such as aluminum or steel, to create holes for screws, bolts, or other fasteners. The ability to drill multiple hole sizes without changing bits is particularly advantageous when working with sheet metal.

2. Electrical and Plumbing Installations: Step drill bits are also widely used in electrical and plumbing installations. They are ideal for drilling holes in materials like PVC, plastic conduit, and electrical boxes, allowing installers to create precise openings for wires, pipes, or connectors.

3. Woodworking: Although less common, step drill bits can also be used for drilling holes in wood, particularly when multiple hole sizes are needed. They can be useful for creating holes for dowels, screws, or other hardware.

4. DIY Projects: For DIY enthusiasts, step drill bits are a go-to tool for a wide range of tasks, from drilling holes in metal cans to creating precise holes in plastic or wood for various projects. Their versatility and ease of use make them an essential part of any toolbox.

5. Automotive Repair: Step drill bits are used in automotive repair to create holes for bolts, screws, or other fasteners in thin metal parts like body panels or exhaust systems. The ability to drill without changing bits is highly useful in such time-sensitive tasks.

6. Furniture and Cabinet Making: When constructing furniture or cabinets, step drill bits are often used to drill holes for hinges, handles, and other hardware. Their precision ensures that the holes align perfectly, which is essential for proper fitting.

Advantages of Using Step Drill Bits

1. Convenience: Step drill bits eliminate the need to frequently change between different drill bits when multiple hole sizes are required. This convenience streamlines the drilling process and reduces the chances of losing or misplacing tools.

2. Clean Holes: The design of step drill bits ensures that holes are drilled cleanly and accurately, with minimal burrs or rough edges. This is especially important when working with materials like sheet metal, where a smooth hole is necessary for a proper fit.

3. Time Efficiency: Step drill bits save time by allowing users to drill multiple hole sizes with a single tool. This reduces the time spent changing tools and allows users to complete projects more efficiently.

4. Cost-Effective: Since step drill bits can perform the function of multiple individual drill bits, they reduce the need for purchasing multiple tools. This can be cost-effective, especially for individuals and businesses that need to drill holes of various sizes.

5. Reduced Material Damage: Because step drill bits have a gradual, conical design, they are less likely to cause material distortion or damage compared to traditional drill bits, which can create jagged holes or require more force.

Conclusion

Step drill bits are an invaluable tool in both professional and DIY settings. Their unique design and ability to create multiple hole sizes with a single tool make them indispensable for a wide range of applications, from sheet metal work to electrical installations. Whether you are a professional craftsman or a DIY enthusiast, having a step drill bit in your toolkit can save you time, effort, and money while ensuring precise and clean results in your drilling tasks.
